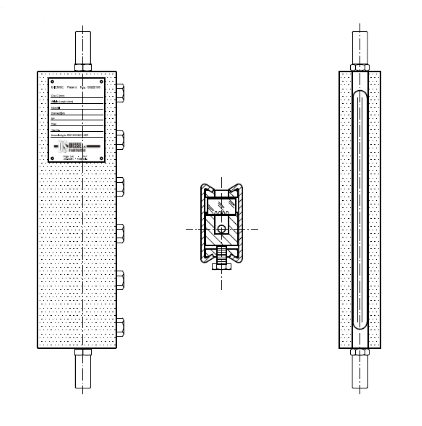

DS Diesse RBR Reflex Glass Assembly B3
Reflex housing with tail pipes PN40 Glass borosilicate reflex according to DIN 7081. Body material C.S.A105 Galvanized. Lateral cover: C.S. Epoxy Painted/ Gasket: Graphite Bolts & nuts : C.S Galvanized. Plate : Aluminium Std.
Get QuoteManufacturers Code :
RBR13/BBrand Name :
DiesseDescription :
RBR Type B3 285mm Centres 145mm Visible LengthSKU :
237125100* :
C.S Galvanized* :
Rated PN40* :
Max Temperature 300°C* :
Borosilicate Glass* :
Graphite GasketsFeel free to get in touch with our Expert team for All types of Combustion Equipment, Boiler Hire, Industrial Boiler & Burner Services & Maintenance!
Contact us at + 353 1414 6400 or Email us at [email protected]
Follow us on Facebook & LinkedIn
| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
