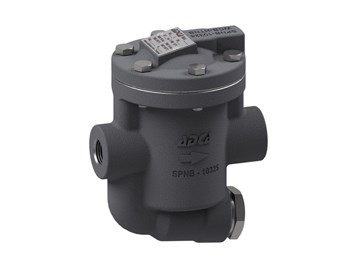

Adca IB12-DP4 3/4" BSP Inverted Bucket Trap
The IB12 is a series of general purpose robust and versatile inverted bucket steam traps manufactured in SG iron. These steam traps operate intermittently and are suitable for use with saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment
Get QuoteManufacturers Code :
TBASize :
3/4" BSPValve Material :
SG IronValve Rating :
14 Bar @ 198°CSKU :
4841* :
Intermittent discharge* :
Discharges condensate at steam temperature.* :
Unaffected by water hammer and vibrations.* :
Easy to maintain.Feel free to get in touch with our Expert team for All types of Combustion Equipment, Boiler Hire, Industrial Boiler & Burner Services & Maintenance!
Contact us at + 353 1414 6400 or EMail us at [email protected]
Follow us on Facebook & LinkedIn
| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
