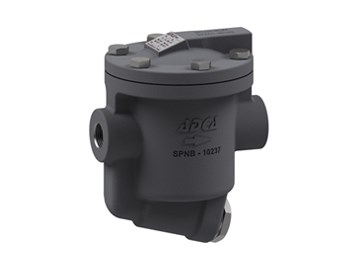

Adca IBB12-12 1" BSP Inverted Bucket Trap
The IBB12 is a series of general purpose robust and versatile inverted bucket steam traps manufactured in SG iron.
These steam traps operate intermittently and are suitable for use with saturated or superheated steam.
Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment.
Manufacturers Code :
TBASize :
1" BSPValve Material :
SG IronValve Rating :
14 Bar @ 198°CSKU :
484333* :
Intermittent discharge.* :
Discharges condensate at steam temperature.* :
Unaffected by water hammer and vibrations.* :
Easy to maintain.* :
Saturated and superheated steam.Feel free to get in touch with our Expert team for All types of Combustion Equipment, Boiler Hire, Industrial Boiler & Burner Services & Maintenance!
