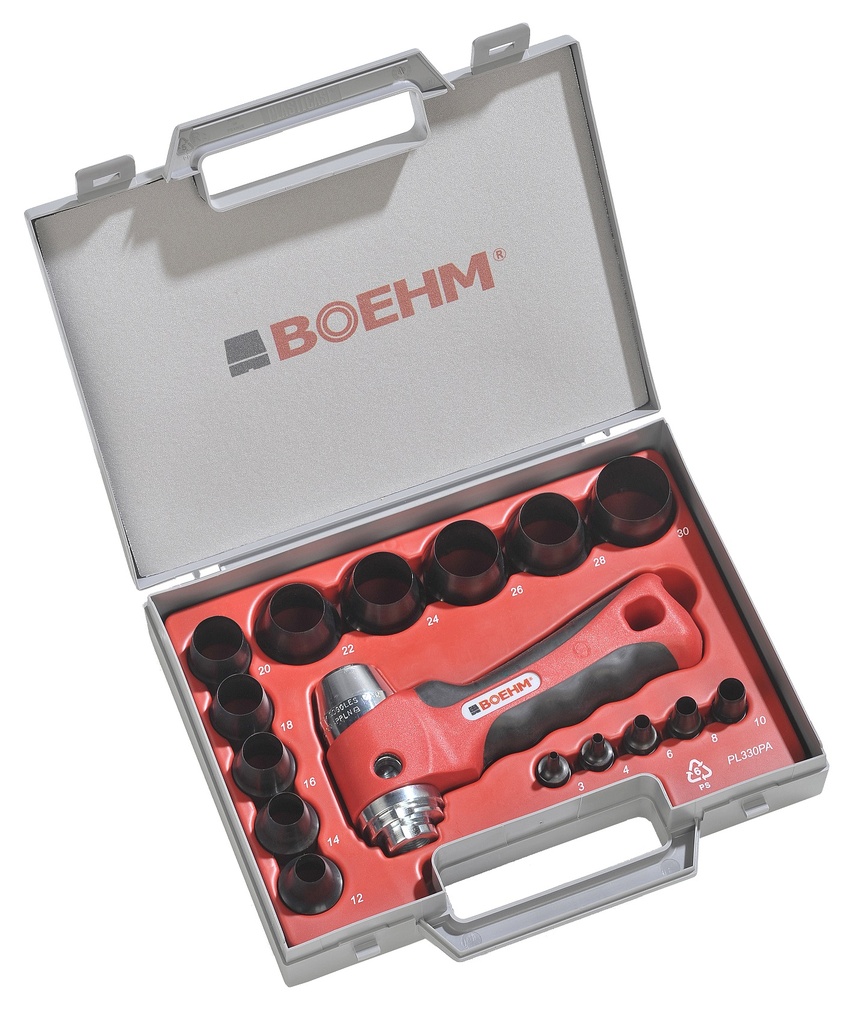

Boehm Hollow Punch Set Ø3 to 30mm
Manufacturers Code :
JLB330PADescription :
3 to 30mm ODSKU :
943307200* :
Patented Anti-vibration design* :
Registered tool design* :
User guide included* :
Made in FranceSet of 15 interchangeable and twinnable hollow punches (even sizes) This set allows the cutting of gaskets, pellets, or washers up to 30mm. The hollow punches are locked on the handle-chuck very easily thanks to the spur system and can be twinned to cut a ring in one operation. The handle-chuck is a high-performance, comfortable and secure striking tool. The reinforced impact head allows a longer tool life and its patented system which absorbs the vibrations is a real comfort for the user.
This set includes:
15 hollow punches: Ø3-4-6-8-10-12-14-16-18-20-22-24-26-28-30 mm
1 handle-chuck for punches from Ø2 to 30 mm and 1/8'' to 1 3/16"
