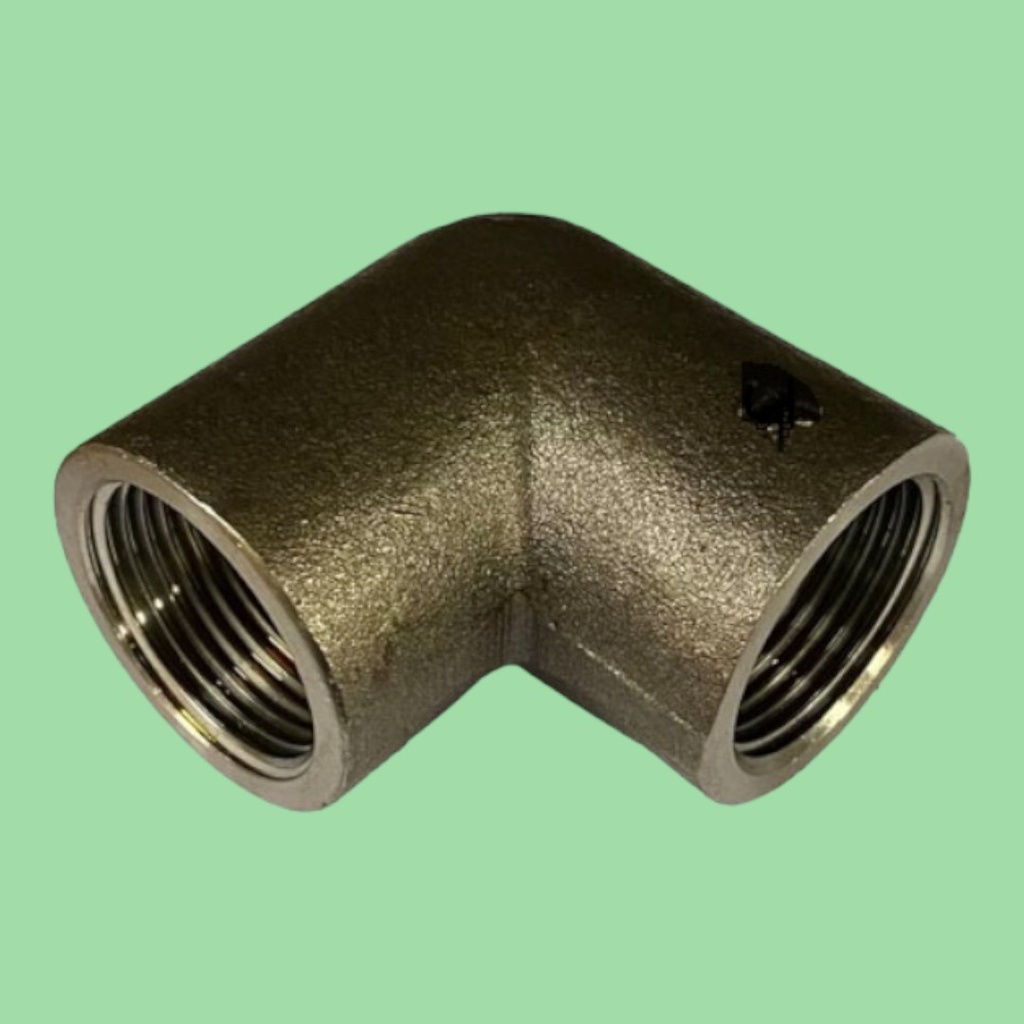

1/2" (15MM) Black Wrought Iron WI 90° Elbow EN10241
Manufactured in the EU to EN 10241
Used with steel tube EN 10255 and similar.
Manufacturers Code :
1500015Description :
1/2" (15mm) Blk WI 90° ElbowSKU :
P082015* :
Forged pipe fitting in black (self-colour) mild steel* :
Manufactured in the EU to EN 10241:2000* :
For installation with BS EN 10255 steel pipe & tube* :
Suitable for systems handling low-pressure (<10 bar) steam, hot-oil, fuels and more* :
Maximum operating pressure: 25 bar (PN25)* :
Maximum operating temperature: 230°CTags :
| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
