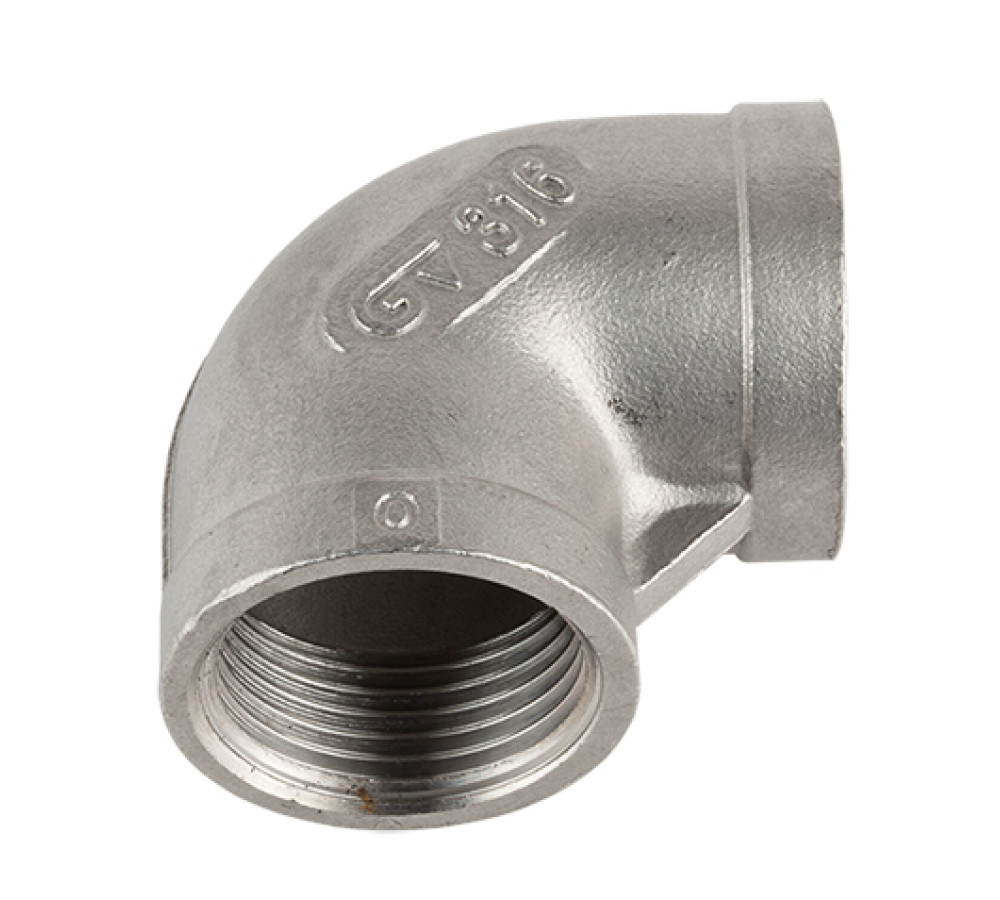

1" Stainless Steel AISI 316 90° Elbow 316

https://www.kbcombustion.ie/web/image/product.template/7751/image_1920?unique=31d9436

NEW RANGE OF STAINLESS STEEL PIPE FITTINGS NORMALIZED TO ISO 4144
1. Made of AISI 316 (Casting).
2. Thread according to ISO 7-1 (EN 10226-1) Std.
3. Dimensions according to ISO 4144 Std.
4. Max. working pressure 20 Bar ( S-150 ).
5. Temperature ratings –20 ºC to 220 ºC.

Get​ Quote
Manufacturers Code :
0090 06
Description :
1" Elbow 90º F-F
SKU :
P102025
* :
Made of AISI 316 (Casting).
* :
Thread according to ISO 7-1 (EN 10226-1) Std.
* :
Dimensions according to ISO 4144 Std.
* :
Max. working pressure 20 Bar ( S-150 ).
* :
Temperature ratings –20 ºC to 220 ºC.
Tags :
Share :


Specifications

AttributeValue
Trap TypeBall Float
Connection1/2" Threaded BSP

Download


Weight96.5 kg
Dimensions6000 × 115 × 115 mm
Brand


Tube Type

Seamless Tube

Connections

Plain Ends

Manufacturing Standard

ASTM A106/ASME SA106 (Grade B)

Grade/Weight

Sch40 (Standard)

Body Material

Black (Self-Colour) Carbon Steel

Length

Full random length (approx. 5.8m)

Outer Diameter

See datasheet

Wall Thickness

See datasheet

Inner diameter

See datasheet

Maximum Operating Pressure

205 bar

Operating Temperature Range

-29°C – 427°C

Certification Availability

3.1 Material test certificate to BS EN 10204. (Must be requested at time of order)
