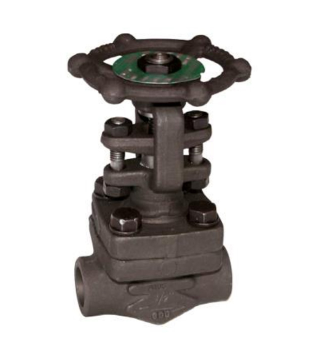

DN 20 TF-GLV-800-G CARBON STEEL GLOBE VALVE Socket Weld A105N / A410 800lbs TRIM. Socket welding ends according to ISO 15761
APPLICATION :
Nafta, steam, petrochemical, petroleum, high pressure.
GENERAL CHARACTERISTICS :
Rising rotating stem OS&Y
Bolted bonnet.
Metal-metal seat F6+XU Respect the flow direction indicated by the arrow. Standard Port
Class 800 lbs.
STANDARDS :
Manufacture according to ISO 9001 : 2008
Directive 2014/68/EU: CE Nº 0036 Risk Category III module H
ressure Tests according to API 598 Table 6
BSP Conical according to ISO 7-1 Rc
NPT according to ANSI B1.20.1
Socket welding ends according to ISO 15761
Designed according to ISO 15761 and API 602 8th
ATEX Group II Category 2G/2D zone 1&21 zone 2&22 according to directive 2014/34/EU Optional marking.
WORKING CONDITIONS :
Maximum Working Pressure : 136 bar.
Maximum Working Temperature : - 29 °C / + 425 °C.
Manufacturers Code :
TF-GLV-800-T-20Description :
DN20 3/4" BSP TF-GLV-800-GSize :
3/4" DN20Valve Material :
Carbon SteelValve Rating :
800 lbsSKU :
TBA* :
Maximum Working Pressure : 136 bar.* :
Operating Temperature : - 29 °C to + 425 °C.* :
Metal-metal seat* :
Rising rotating stem OS&Y* :
BSP Thread according to ISO 7-1 Rc* :
ATEX Group II Category 2G/2D zone 1&21 zone 2&22.| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
