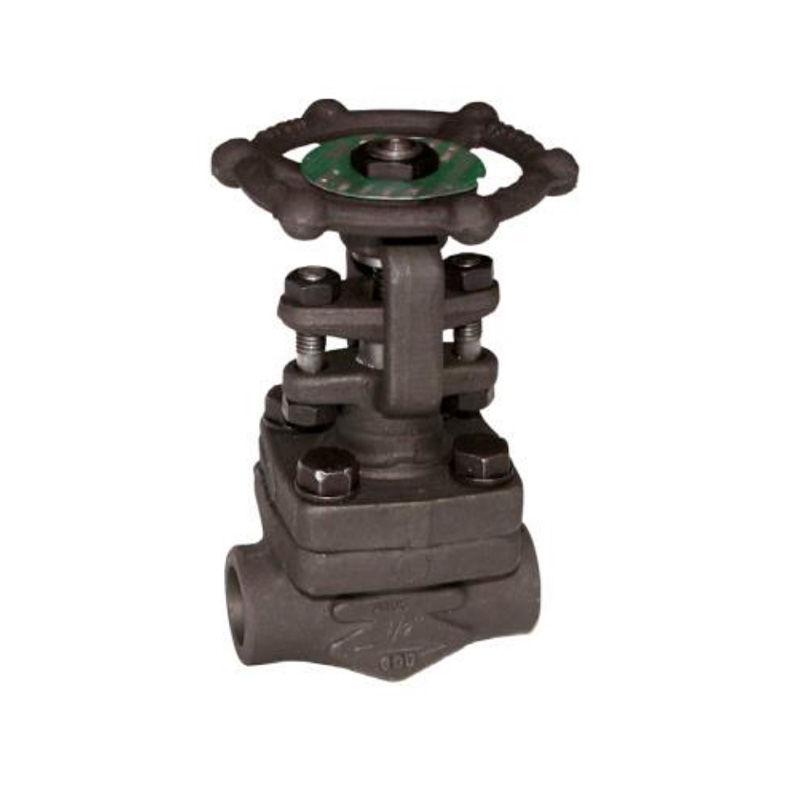

DN 50 TF-GLV-800-G CARBON STEEL GLOBE VALVE BSP A105N / A410 800lbs TRIM
Nafta, steam, petrochemical, petroleum, high pressure.
GENERAL CHARACTERISTICS :
Rising rotating stem OS&Y
Metal-metal seat F6+XU Respect the flow direction indicated by the arrow. Standard Port
Class 800 lbs.
Manufacture according to ISO 9001 : 2008
Directive 2014/68/EU: CE Nº 0036 Risk Category III module H
ressure Tests according to API 598 Table 6
BSP Conical according to ISO 7-1 Rc
NPT according to ANSI B1.20.1
Socket welding ends according to ISO 15761
Designed according to ISO 15761 and API 602 8th
ATEX Group II Category 2G/2D zone 1&21 zone 2&22 according to directive 2014/34/EU Optional marking.
WORKING CONDITIONS :
Maximum Working Pressure : 136 bar.
Maximum Working Temperature : - 29 °C / + 425 °C.
