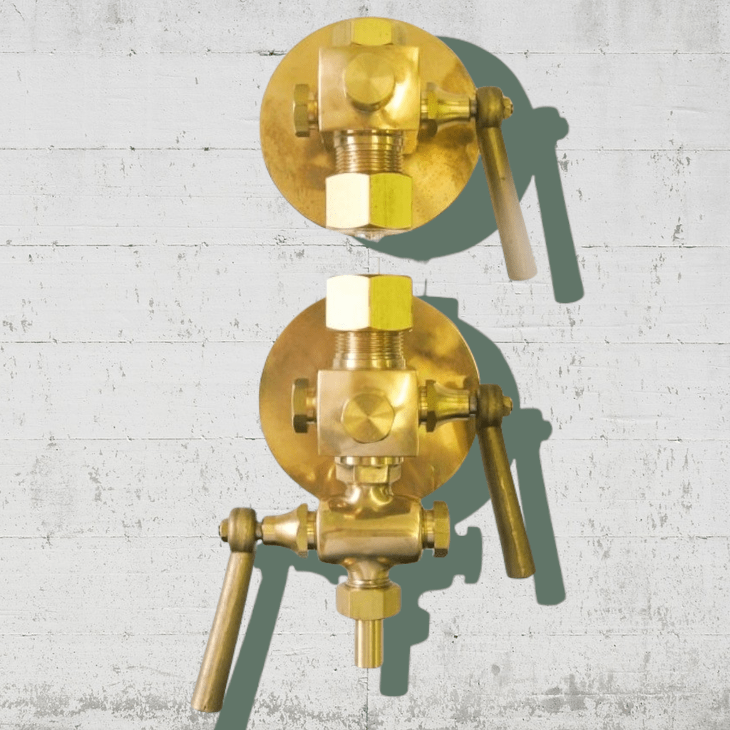

Fig: 41 Flanged Gauge Cocks 20mm Flanged PN16/40 Left Handed - Light Pattern
WATER GAUGE 41 1/2" x 4 1/2" flanged (0041)
Material : LG2 Gunmetal.
For steam working pressures up to 250lbs/in2 (17.2bar) and temperatures up to 500F (260 C).
These gauges are fitted with sleeves which can be adjusted by means of packing nuts as water
necessitates and provide easy and efficient maintenance. An automatic shut-off ball valve in the
water arm to prevent the escape of water is available on request. An automatic shut off valve in
the steam arm is also available, if required. Steam and water arms can be handed right or left to suit
installation and drilled to appropriate standards
Set = Top, Bottom and Drain Cock. All water gauges can be handed left or right.
Polished. 5.44 Kg per set
Flange 4 1/2” 115mm
Glass 1/2”
Sleeves AB12
Cones No 74
Protector Mount size 1 3/4"
Manufacturers Code :
Fig:41Description :
20mm Left HandSize :
20mmValve Material :
BronzeSKU :
2031000LM* :
Material : LG2 Gunmetal.| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
