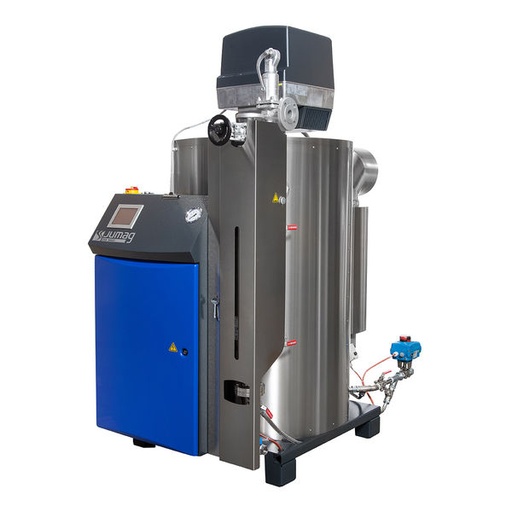

JUMAG DG460 Steam Boiler with single economiser, without burner
JUMAG steam boiler DG460 in compact, standing modular design, EC type-tested, with CE-label, with the following characteristics:

▪ Up to 97% boiler efficiency or higher efficiency with condensing boiler technology with a second economiser (option)
▪ Completely insulated, standing water-space vaporisation system made of boiler steel (multipass through boiler, i.e. no coil)
▪ 3 to 5 pass flue gas circulation (depending on the type of boiler)
▪ Integrated maintenance-free centrifugal pump (no piston pump)
▪ Touch panel with integrated PLC and full-text operating display for menu-guided plant operation
▪ Grid form purs. to IEC 364-3, TN-S-System, 3 AC 400V/50Hz Design of boiler control purs. to DIN/EN-standards

Steam output: 460 kg/h respectively 7.66 kg/min
Thermal output: 300 kW
Operating pressure (safety-valve): 13 bar overpressure
Working pressure max.: 11 bar overpressure
Boiler warm-up time: up to 8 minutes
Power supply: 400V / 50Hz
Connected load: kW
Exhaust connection: diameter
Boiler height: mm
Boiler width: mm
Boiler depth: mm
Hight exhaust connection (middle): mm

The data above applies in connection with the associated Jumag economiser, a feed water temperature of 95°C and 6 bar working pressure.

Safety-technical equipment: Safety-valve, water-level display with 2-fold water defect safety, safety exhaust temperature and safety steam pressure limiter pursuant to DGRL 97/23/EC.

Note: Price without burner and economiser (see accessories selection) & Ex .Works Hirschberg
Danstoker Manifold
C/W High and low pressure cut out switches, Control Stat and High Limit Thermostat and also two temperature gauges for flow and return.
Danstoker Global No.13 Hot Water Boiler "LUX". maximum working pressure of 4.0 bar.
Danstoker Global No.13 Hot Water Boiler "LUX". Max continuous heat output 10000KW and maximum working pressure of 4.0 bar. CE Marked with the max flow temperature of 120c. Boiler without mountings including delivery to Ireland but not offloading.
Danstoker Global No.12 Hot Water Boiler "LUX". maximum working pressure of 6.0 bar.
Danstoker Global No.12 Hot water boiler "LUX". Max continuous heat output 8500KW and maximum working pressure of 6.0 bar. CE Marked with Max flow temperature of 120c.Boiler without mountings including delivery to Ireland but not offloading.
Danstoker Global No.12 Hot Water Boiler "LUX". maximum working pressure of 4.0 bar.
Danstoker Global No.12 Hot Water Boiler "LUX". Max continuous heat output of 8500KW and maximum working pressure of 4.0 bar. CE Marked with a max flow temperature of 120c. Boiler without mountings including delivery to Ireland but not offloading
Danstoker Global No.11 Hot Water Boiler "LUX". maximum working pressure of 6.0 bar.
Danstoker Global No.11 Hot Water Boiler "LUX". Max Continuous Heat Output 7500KW and Maximum Working Pressure of 6.0Bar. CE Marked with Max Flow Temperature of 120c.Boiler Without Mountings including delivery to Ireland but not offloading.
Danstoker Global No.11 Hot Water Boiler "LUX". maximum working pressure of 4.0 bar.
Danstoker Global No.11 Hot Water Boiler "LUX". Max Continuous Heat Output of 7500KW and Maximum Working Pressure of 4.0bar. CE Marked With a Max Flow Temperature 120c. Boiler Without Mountings Including Delivery to Ireland but Not Offloading.
Danstoker Global No.10 Hot Water Boiler "LUX". maximum working pressure of 6.0 bar.
Danstoker Global No.10 Hot Water Boiler "LUX". Max Continuous Heat Output 6000KW and Maximum Working Pressure of 6.0 Bar. CE Marked with a Max Flow Temperature of 120c.Boiler Without Mountings Including Delivery to Ireland but not Offloading.
