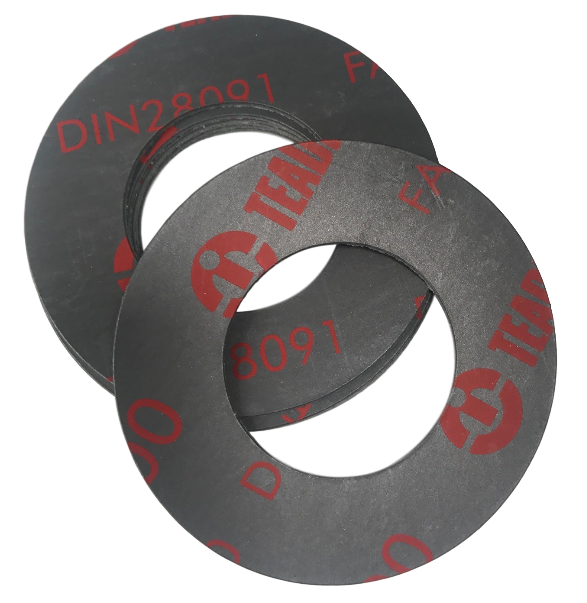

Teadit NA-1100 Graphite Gasket DN100/PN40 1.5mm
Application / service:
TEADIT style NA-1100 is suitable for sealing petroleum derivatives, water, saturated steam, solvents, gases and chemical products in general.
TEADIT style NA-1100 is a universal jointing sheet with high temperature and pressure resistance, manufactured from graphite and carbon fibre, bonded with Nitrile rubber (NBR). It is being manufactured by means of a hot calender process. TEADIT maintains a quality management system that is certified according to DIN EN ISO 9001.
SKU :
2734010015Feel free to get in touch with our Expert team for All types of Combustion Equipment, Boiler Hire, Industrial Boiler & Burner Services & Maintenance!
Contact us at + 353 1414 6400 or Email us at [email protected]
Follow us on Facebook & LinkedIn
| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
