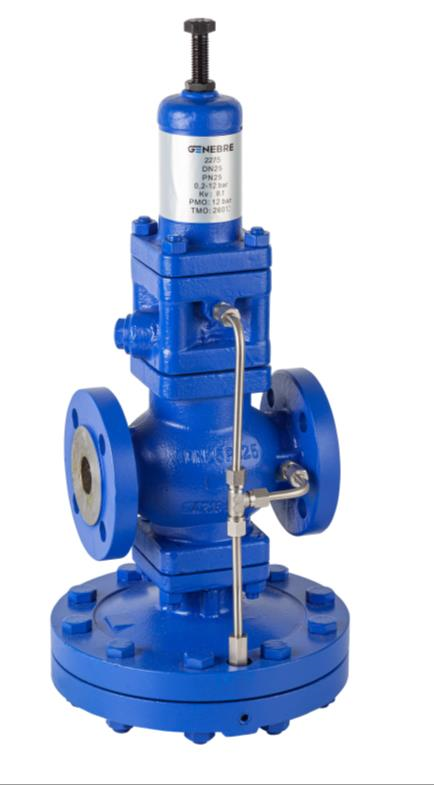

Genebre DN 15 Fig: 2275 Pilot operated Pressure Reducing Valve.
Flanged ends 1/2", DN15 according to EN 1092-1 PN25. Construction: Carbon steel 1.0619 (WCB). Maximum input pressure 25 bar. Outlet pressure from 0,5 to 12 bar. Maximum working temperature 260ºC. (Steam or compressed air applications)
Manufacturers Product Code :
2275Brand Name :
GenebreCatalog Product Description :
DN15, 1/2" Flanged - 0.5 to 12 BarValve Size :
1/2" 15mmValve Material :
Carbon SteelValve Rating :
PN25Barcode :
436500200Feel free to get in touch with our Expert team for All types of Combustion Equipment, Boiler Hire, Industrial Boiler & Burner Services & Maintenance!
Contact us at + 353 1414 6400 or EMail us at [email protected]
Follow us on Facebook & LinkedIn
Brand | Genebre |
