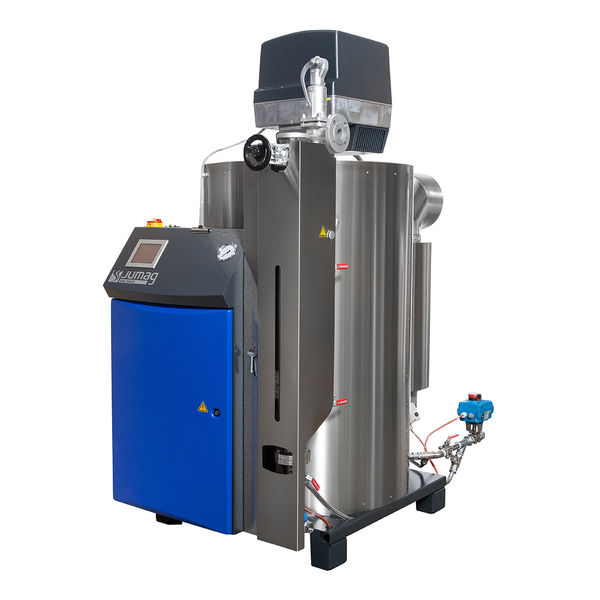

JUMAG DG460 Steam Boiler with single economiser, without burner
J
Get Quote| Brand: Jumag |
SKU :
DGF460* :
▪ Integrated maintenance-free centrifugal pump (no piston pump)* :
▪ Up to 97% boiler efficiency or higher efficiency with condensing boiler technology with a second economiser (option)* :
▪ Completely insulated, standing water-space vaporisation system made of boiler steel (multipass boiler, i.e. no coil)* :
▪ 3 to 5 pass flue gas circulation (depending on the type of boiler)* :
▪ Touch panel with integrated PLC and full-text operating display for menu-guided plant operation* :
▪ Grid form purs. to IEC 364-3, TN-S-System, 3 AC 400V/50Hz Design of boiler control purs. to DIN/EN-standardsTags :
JUMAG steam boiler DG460 in compact, standing modular design, EC type-tested, with CE-label, with the following characteristics:
Steam output: 460 kg/h respectively 7.66 kg/min
Thermal output: 300 kW
Operating pressure (safety-valve): 13 bar overpressure
Working pressure max.: 11 bar overpressure
Boiler warm-up time: up to 8 minutes
Power supply: 400V / 50Hz
Connected load: kW
Exhaust connection: diameter
Boiler height: mm
Boiler width: mm
Boiler depth: mm
Hight exhaust connection (middle): mm
The data above applies in connection with the associated Jumag economiser, a feed water temperature of 95°C and 6 bar working pressure.
Safety-technical equipment: Safety-valve, water-level display with 2-fold water defect safety, safety exhaust temperature and safety steam pressure limiter pursuant to DGRL 97/23/EC.
Note: Price without burner and economiser (see accessories selection) & Ex .Works Hirschberg
Feel free to get in touch with our Expert team for All types of Combustion Equipment, Boiler Hire, Industrial Boiler & Burner Services & Maintenance!
Contact us at + 353 1414 6400 or EMail us at [email protected]
Follow us on Facebook & LinkedIn
Jumag Boilers
JUMAG steam boilers are compact, standing modular design, EC type-tested, with CE-label, with the following characteristics:
Operating pressure (safety-valve): 13 bar overpressure
Working pressure max.: 11 bar overpressure
Power supply: 400V / 50Hz
Hight exhaust connection (middle):
Safety-technical equipment: Safety-valve, water-level display with 2-fold water defect safety, safety exhaust temperature and safety steam pressure limiter pursuant to DGRL 97/23/EC.
Note: Prices are without burner and economiser (see accessories selection
Compact Steam System
Complete skid mounted steam system ready to plug and steam.
Factory assembled on a robust stainless steel skid with all necessary components for the customer specification.
