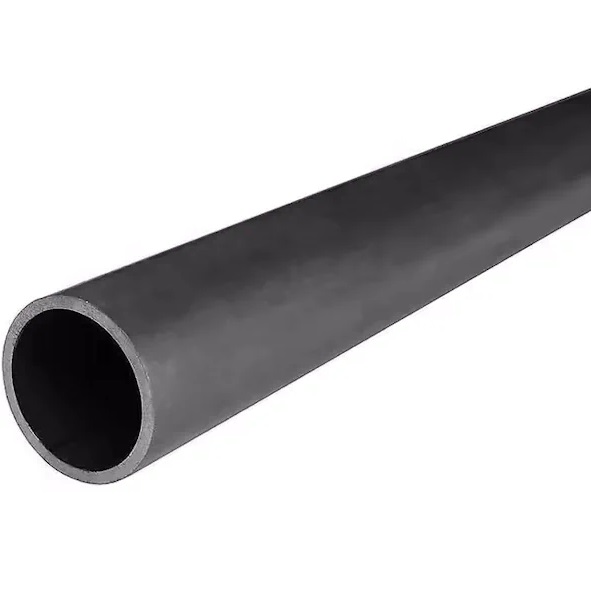

Schedule 40 (Sch40/Std) hot finish seamless (HFS) carbon steel pipe, also known as quality tube and line piping
Manufactured to the ASTM A106 standard (Grade B)
Outer diameter (OD): See datasheet
Wall Thickness (WT): See datasheet
Maximum operating pressure: 205 bar (2984 psi) at up to 37°C
Operating temperature range: -29°C – 427°C
Supplied in full random lengths (5.8m – 6m)
Fully traceable with 3.1 material test certification to BS EN 10204 available
| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
