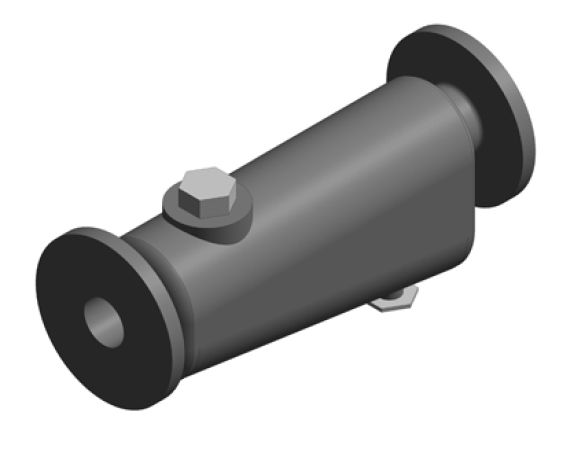

Spirax Sarco 100mm PN16 S13 Baffle-Type Seperator
The S13 separator is an SG iron baffle type separator used for the removal of entrained liquids in steam, compressed air or gas systems. The fitting of insulation jackets will increase the performance of the separator.
For full details see the data sheet.
Brand Name :
Spirax SarcoSKU :
790231161Specifications
| Attribute | Value |
| Material | SG Iron |
| PMO | 13.7 barg |
| Size | DN100 |
| Connections | Flanged PN16 |
| Weight | 60 kg |
| Weight | 96.5 kg |
|---|---|
| Dimensions | 6000 × 115 × 115 mm |
| Brand | |
| Tube Type | Seamless Tube |
| Connections | Plain Ends |
| Manufacturing Standard | ASTM A106/ASME SA106 (Grade B) |
| Grade/Weight | Sch40 (Standard) |
| Body Material | Black (Self-Colour) Carbon Steel |
| Length | Full random length (approx. 5.8m) |
| Outer Diameter | See datasheet |
| Wall Thickness | See datasheet |
| Inner diameter | See datasheet |
| Maximum Operating Pressure | 205 bar |
| Operating Temperature Range | -29°C – 427°C |
| Certification Availability | 3.1 Material test certificate to BS EN 10204. (Must be requested at time of order) |
