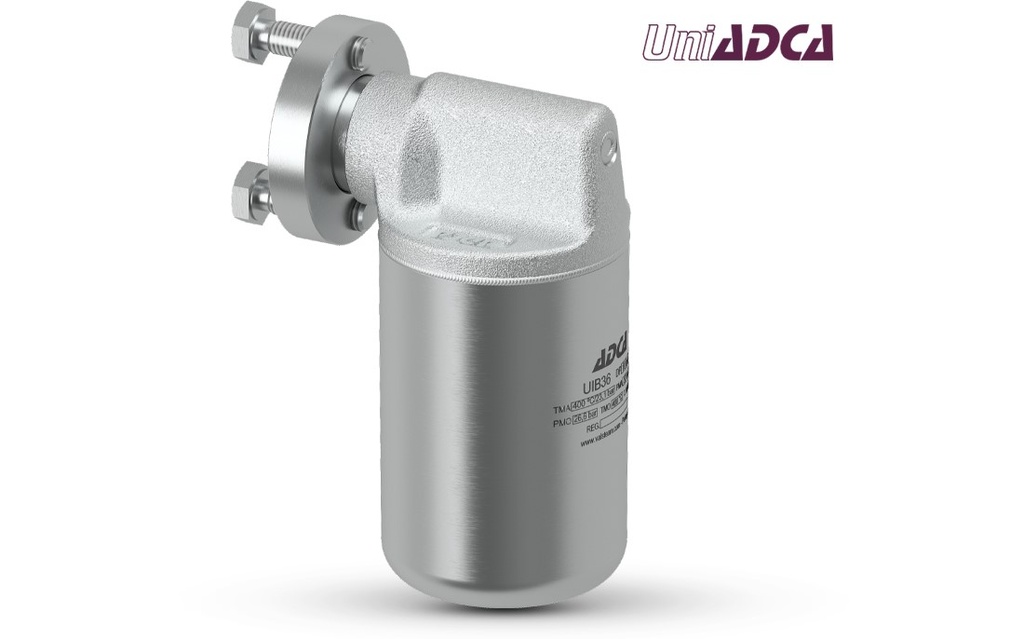

The UIB36 series inverted bucket steam traps, completely in stainless steel, are maintenance free and sealed.
These steam traps operate intermittently, and are suitable for use with low to high pressure saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment. These traps fit the UCX universal connectors and CTS4U compact stations.
Datasheet
| Material | Stainless Steel |
| Sizes | According to the connector |
| Max Operating Pressure | 27 Bar |
| Max. Operating Temperature | 400°C |
| Flow Rate Capacity | Up to 470 kg/h |
