Autoflame MK8 MM Module with Expansion Board Fitted as standard

https://www.kbcombustion.ie/web/image/product.template/8/image_1920?unique=cbc1c9f

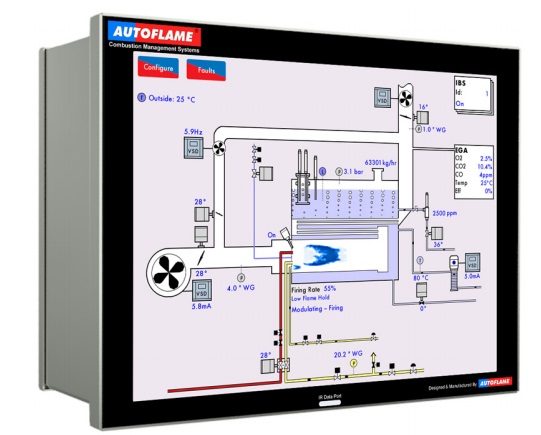

Autoflame MK8 M.M. Module with Expansion Board fitted as standard. 12.1" full colour touch screen, 6 Channel with flame safeguard control. MM80001

Get Quote

Manufacturers Product Code: MM80001
Brand Name: Autoflame
Catalog Product Description: MK8 MM Module with Expansion Board Fitted as standard.
Barcode: 705125000

Terms and Conditions

MK 8 MM

The Mk8 MM Controller is a Micro-Modulating system that offers comprehensive control over industrial and commercial boiler/burners.



Manage virtually all boiler processes from a single 12.1” multi-touch screen interface without any added modules.



Ideal for steam and water boilers (watertube or firetube), kilns and steam generators. Designed for oil, natural gas or both fuels.



Linkageless servomotor system and automated flame safeguard create conditions for unmanned boilerhouse.



Modbus connectivity allows for remote monitoring and management.



Control more with software unlocks



Access codes unlock advanced features without the inconvenience of hardware changes or added modules:

  • Autoflame water level management
  • Analogue water level (requires Autoflame water level)
  • TDS/Top blowdown
  • Bottom blowdown
  • Draught control
  • Direct Modbus connectivity
  • First out annunciation
  • Fully metered, cross-limited control
  • Steam flow & water flow metering

Discover more

Feel free to get in touch with our Expert team for All types of Combustion Equipment, Boiler Hire, Industrial Boiler & Burner Services & Maintenance!



Contact us  at  + 353 1414 6400  or EMail us at  [email protected]

Follow us on Facebook & LinkedIn



Technical Data Sheets

Datasheet
