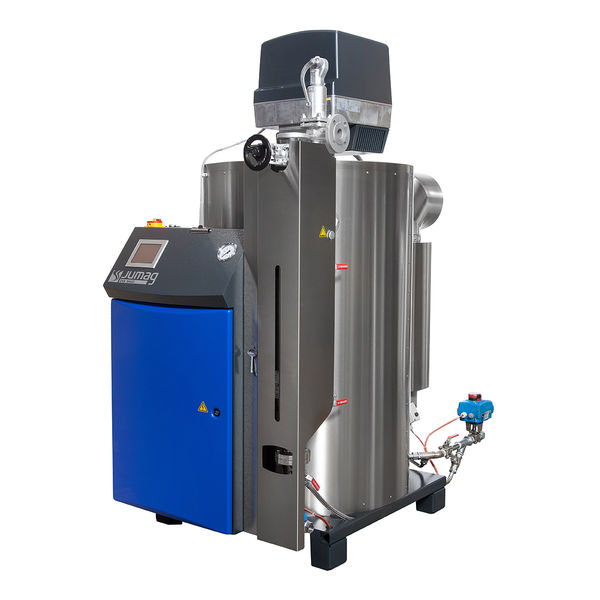

JUMAG DG460 Steam Boiler with single economiser, without burner

    This combination does not exist.

    Get Quote

    JUMAG steam boiler DG460 in compact, standing modular design, EC type-tested, with CE-label, with the following characteristics:

    ▪ Up to 97% boiler efficiency or higher efficiency with condensing boiler technology with a second economiser (option)
    ▪ Completely insulated, standing water-space vaporisation system made of boiler steel (multipass through boiler, i.e. no coil)
    ▪ 3 to 5 pass flue gas circulation (depending on the type of boiler)
    ▪ Integrated maintenance-free centrifugal pump (no piston pump)
    ▪ Touch panel with integrated PLC and full-text operating display for menu-guided plant operation
    ▪ Grid form purs. to IEC 364-3, TN-S-System, 3 AC 400V/50Hz Design of boiler control purs. to DIN/EN-standards

    Steam output: 460 kg/h respectively 7.66 kg/min
    Thermal output: 300 kW
    Operating pressure (safety-valve): 13 bar overpressure
    Working pressure max.: 11 bar overpressure
    Boiler warm-up time: up to 8 minutes
    Power supply: 400V / 50Hz
    Connected load: kW
    Exhaust connection: diameter
    Boiler height: mm
    Boiler width: mm
    Boiler depth: mm
    Hight exhaust connection (middle): mm

    The data above applies in connection with the associated Jumag economiser, a feed water temperature of 95°C and 6 bar working pressure.

    Safety-technical equipment: Safety-valve, water-level display with 2-fold water defect safety, safety exhaust temperature and safety steam pressure limiter pursuant to DGRL 97/23/EC.

    Note: Price without burner and economiser (see accessories selection) & Ex .Works Hirschberg
