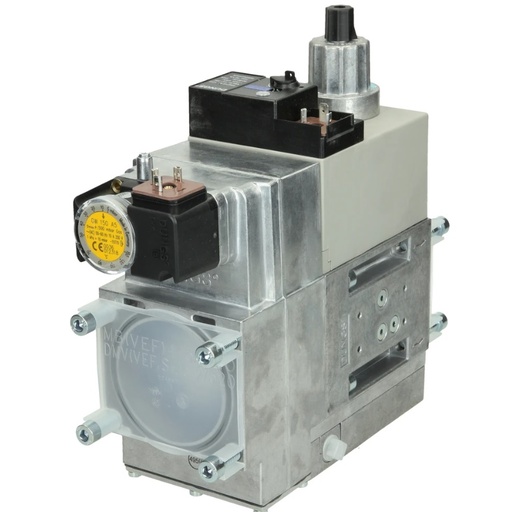

Dungs MB-ZRDLE 405 B 01 S 20 1/2"
- Control and safety combination
- Two-stage operation
- Opens slowly with high-speed lift (adjustable)
- Incl. fine filter
- Adjustable pressure gauge GW 150 A5, pressure controller class A,
- Max. operating overpressure 360 mbar
- 2 magnetic valves class A, 230 V (AC)
- IP 54 approved according to CE Gas Device Directives (CE-Ident-No.).

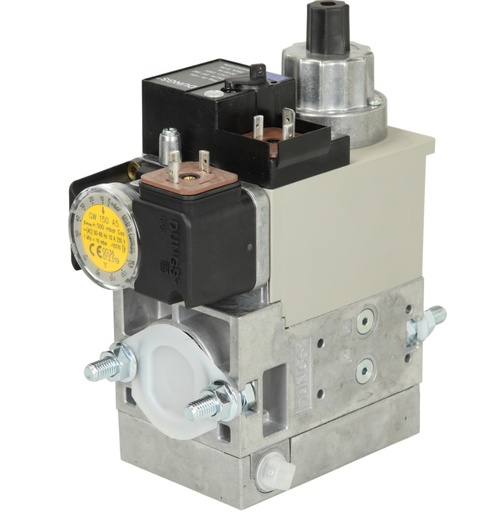

Dungs MB-DLE 407 B01 S20 3/4"
- Control and safety unit
- Single-stage operation
- Opens slowly with adjustable high-speed lift (adjustable)
- Incl. fine filter, adjustable pressure gauge GW 150 A 5
- Pressure controller class A, max. operating overpressure 360 mbar
- 2 solenoid valves class A, 230 V (AC)
- IP 54, certified according to CE gas device regulations (CE-Ident-No.) (Delivery package does not include flange and plug.)

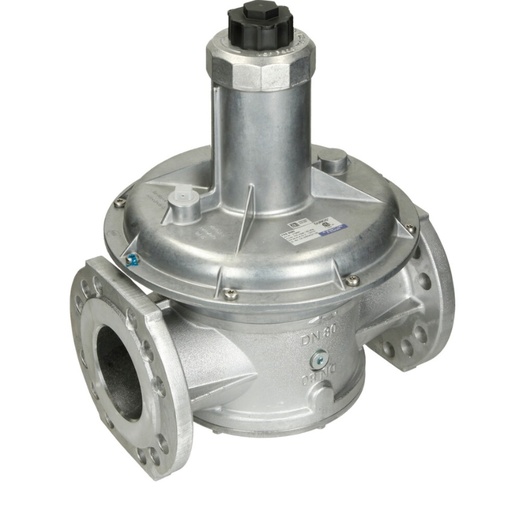

80mm PN16 Dungs FRS5080 Gas Regulator 10-30 Mbar
Max. input pressure 0.5 bar with safety diaphragm, DIN 3380/SG 10, primary pressure compensation, zero termination, standard design for control pressures 10-30 mbar (blue spring).
More control pressures (2.5-200 mbar) available on request.

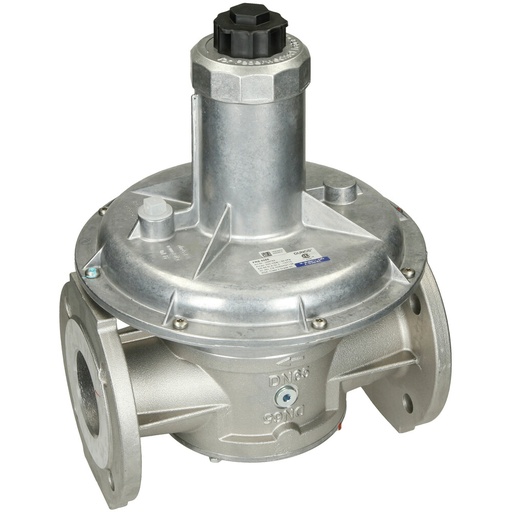

65mm PN16 Dungs FRS5065 Gas Regulator 10-30mBar
Max. input pressure 0.5 bar with safety diaphragm, DIN 3380/SG 10, primary pressure compensation, zero termination, standard design for control pressures 10-30 mbar (blue spring).
More control pressures (2.5-200 mbar) available on request.
20mm BSP Dungs GF507/1 Gas Filter
For atmospheric gas burners, industrial burners, boilers, industrial furnaces,DIN 3386, DIN-DVGW approval measuring nipple can be attached to inlet and outlet Pmax 500 mbar
